Connecting to Cisco Small Business VPN from Ubuntu

By Leo Gaggl

March 4, 2012

Connecting to IPSec VPN gateways has always been one of the more painful things to do. Unfortunately Cisco is not helping by being extremely sluggish on making their utilities available on most recent OS revisions (you can’t even get their QuickVPN client to work properly on 64bit Win7 yet). Operating System support outside of Windows seems to be pretty much non-existent (see https://supportforums.cisco.com/thread/2040595).

Shame on you Cisco !

Option 1 – running QuickVPN under using wine

Download the QuickVPN client

http://www.cisco.com/cisco/software/type.html?mdfid=282414013&flowid=787

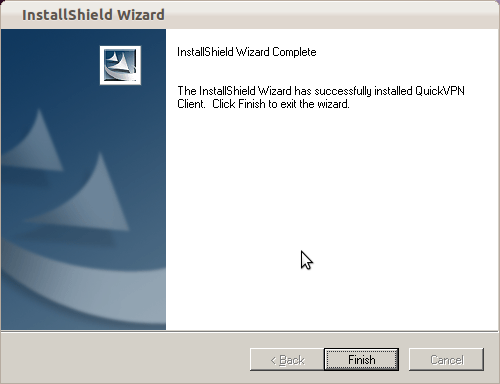

Install using wine

wine setup.exe

Copy the QuickVPN Client Certificate to the QuickVPN program folder and run

cp RVS4000_Client.pem ~/.wine/drive_c/Program\ Files/Cisco\ Small\ Business/QuickVPN\ Client/
cd ~/.wine/drive_c/Program\ Files/Cisco\ Small\ Business/QuickVPN\ Client/

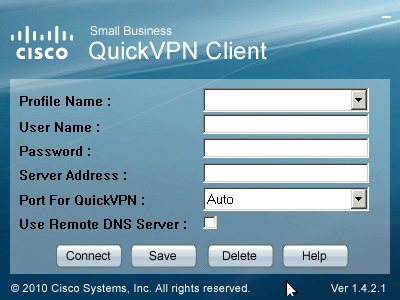

wine VPNClient.exe

Option 2 – vpnc connection

apt-get install vpnc openconnect  network-manager-vpnc  network-manager-openconnect

Theoretically it should be possible to connect to the Cisco Small Business Routers using vpnc (& openconnect). However there is ZERO information from Cisco as to the settings and the QuickVPN utility seems to use some non-standard authentication and handshake mechanisms.

I would love to hear from anybody who was able to connect using native (and standard) Linux VPN utilities rather than the wine hack above.
